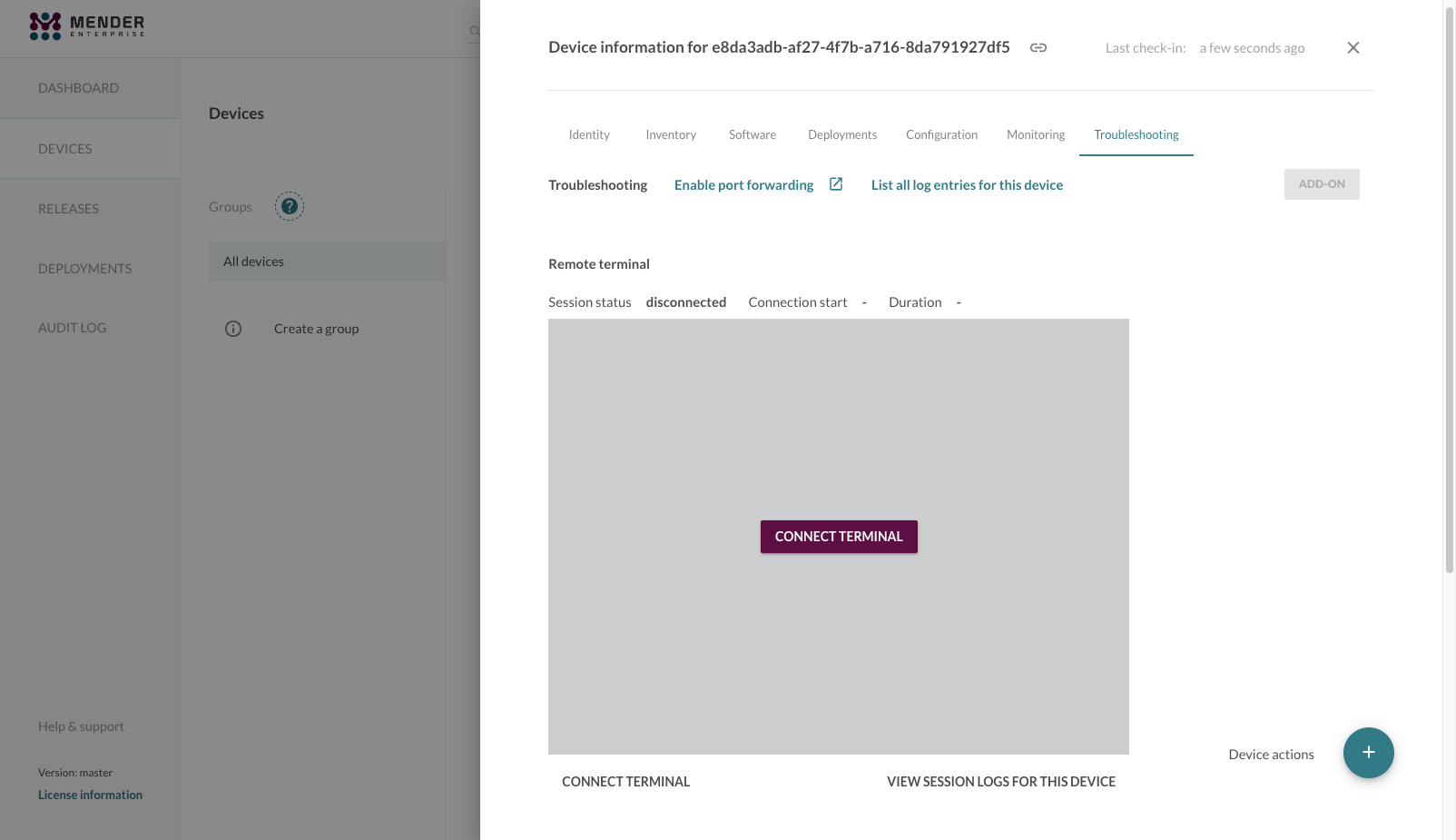

Remote Terminal is a Mender add-on allowing remote command execution via interactive, live, fully functional terminal from the Mender UI. You can start a terminal session to any connected device by clicking "Launch a new Terminal" in the UI (see the picture below).
All you need is mender-connect configured and running alongside the Mender Client, and you can get a live terminal where you can freely type commands.

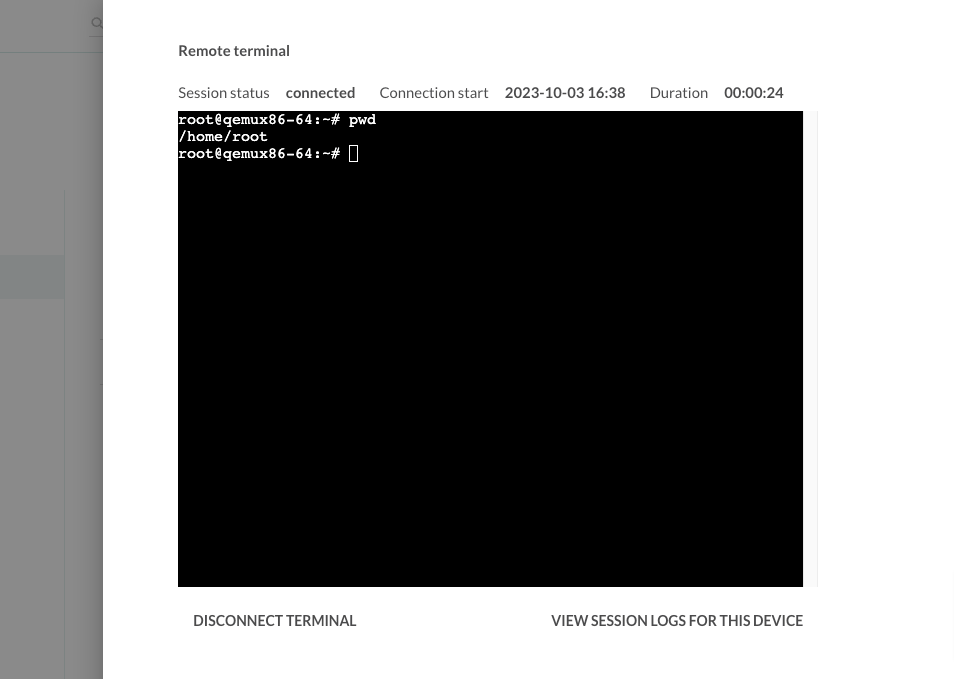

Every keystroke in the above popup window will go to the standard input of a shell running on the device.
Remote Terminal by Mender passes messages of a defined protocol over a websocket connection. The two main actors: the mender-connect and Mender UI communicate using a well-defined open protocol over a websocket connection. They exchange messages which carry user keystrokes, terminal output, and control data. Therefore, there is no relation to SSH and no part of it is either used or required. You are, however, able to run sshd or ssh command, since you have a fully functional terminal at your disposal. Mender does not impose any additional restrictions on the commands, shell, or terminal. The picture below shows a simplified architecture with a websocket, mender-connect, and a shell running in a child process of mender-connect with allocated pseudo tty.
There is a loose coupling between Mender and the add-ons like mender-connect. Remote Terminal expects a certain well-defined DBus API to be in place on a device, and a working websocket connection endpoint; none of these have to come from or go to Mender. As long as you send compatible messages over the websocket, mender-connect will work. With Mender, however, you have everything in place, and all you need is to perform a simple configuration of the client and start mender-connect. Additionally, you can take advantage of the Role Based Access Control and Audit Logs, since we fully integrated mender-connect add-on into Mender.
The mender-connect supports simultaneous shells from different Mender users. On the device, you run the shell as a system user which you can set in the configuration.
An arbitrary number of users each running an arbitrary number of sessions can easily lead to resources exhaustion on a device. To this end, mender-connect imposes two configurable restrictions on:
On the other hand, you can imagine a scenario when you reach both limits and lock yourself out from the remote terminal. In order to protect against this scenario, mender-connect supports automatic termination of idle and/or expired sessions.
A remote terminal session consists of a spawned shell (as a subprocess of the mender-connect process) a unique string called a session id, and a system username. The main responsibility of the mender-connect executable is to read messages from the websocket, route them by session id to the correct shell, read the output going to the terminal, and pass it upstream over the websocket.
