Azure IoT Hub integration


Mender supports preparing devices to use Azure IoT Hub. After installing Mender on the device it is automatically created in Azure IoT Hub, and applications running on the device get access to the Azure IoT connection string. With Mender in place, you can simply start writing your Azure IoT application by reading the connection string from a well-defined place on the device. Secondly, the Device Twin from the Azure IoT Hub becomes available to manage from Mender.

This integration is available in all Mender plans, as well as Mender Open Source.

You need Mender Configure to distribute the Azure IoT device connection strings to the devices.

It is currently possible to have one Azure IoT Hub integration configured per Mender Organization (aka. tenant).

After you enable the integration you can create devices in the Azure IoT Hub automatically through simply accepting them in the Mender UI. Existing devices (in both systems) are left unchanged.

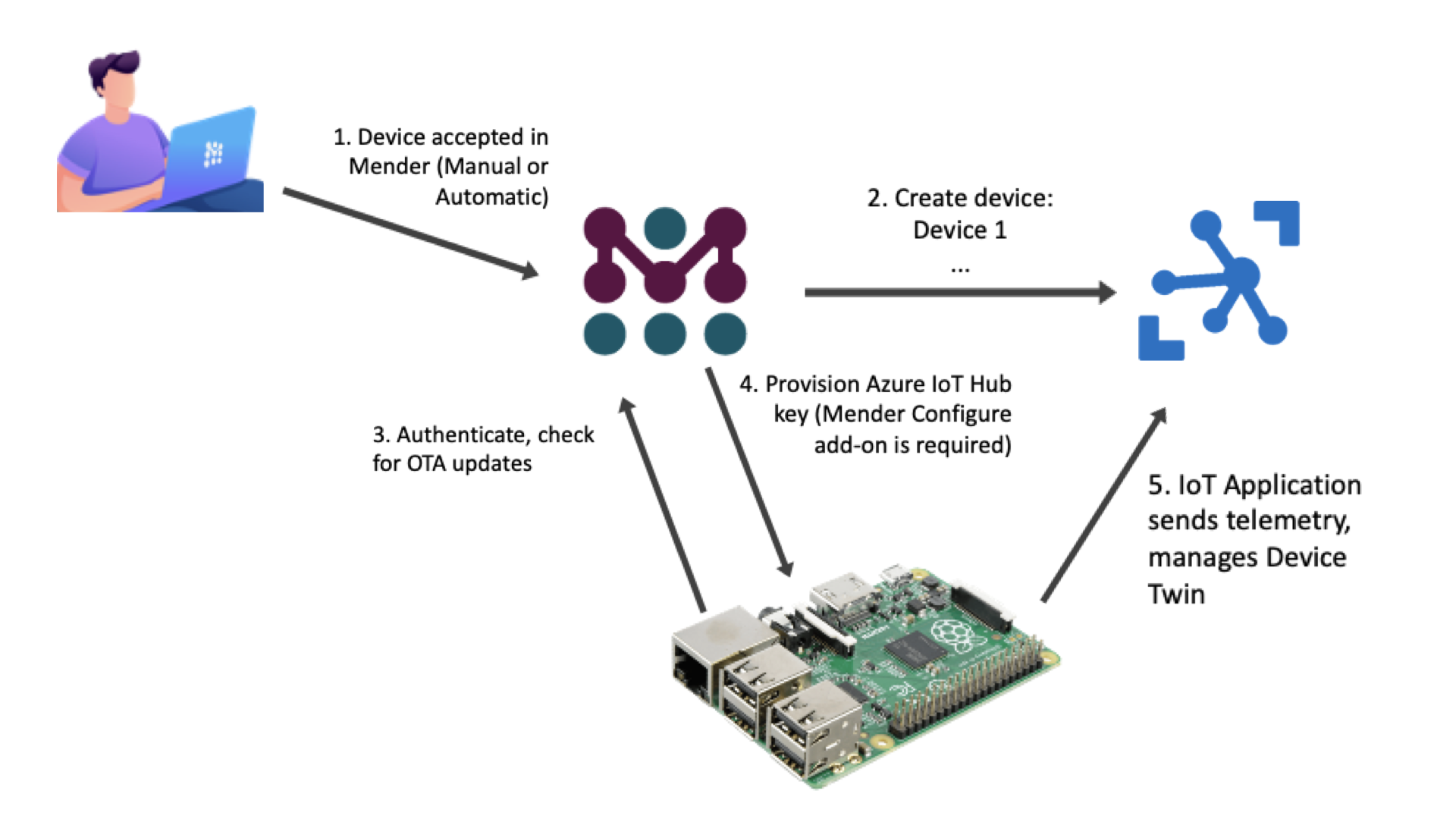

simple flow


A Mender server and device

You need a device integrated with Mender, see the Get started guide.

Azure IoT Hub

You need to set up an Azure account with Azure IoT Hub - see Azure IoT Hub documentation for more information. To integrate Mender with Azure IoT Hub you need to provide an IoT Hub connection string.

Configuring Mender to integrate with Azure IoT Hub

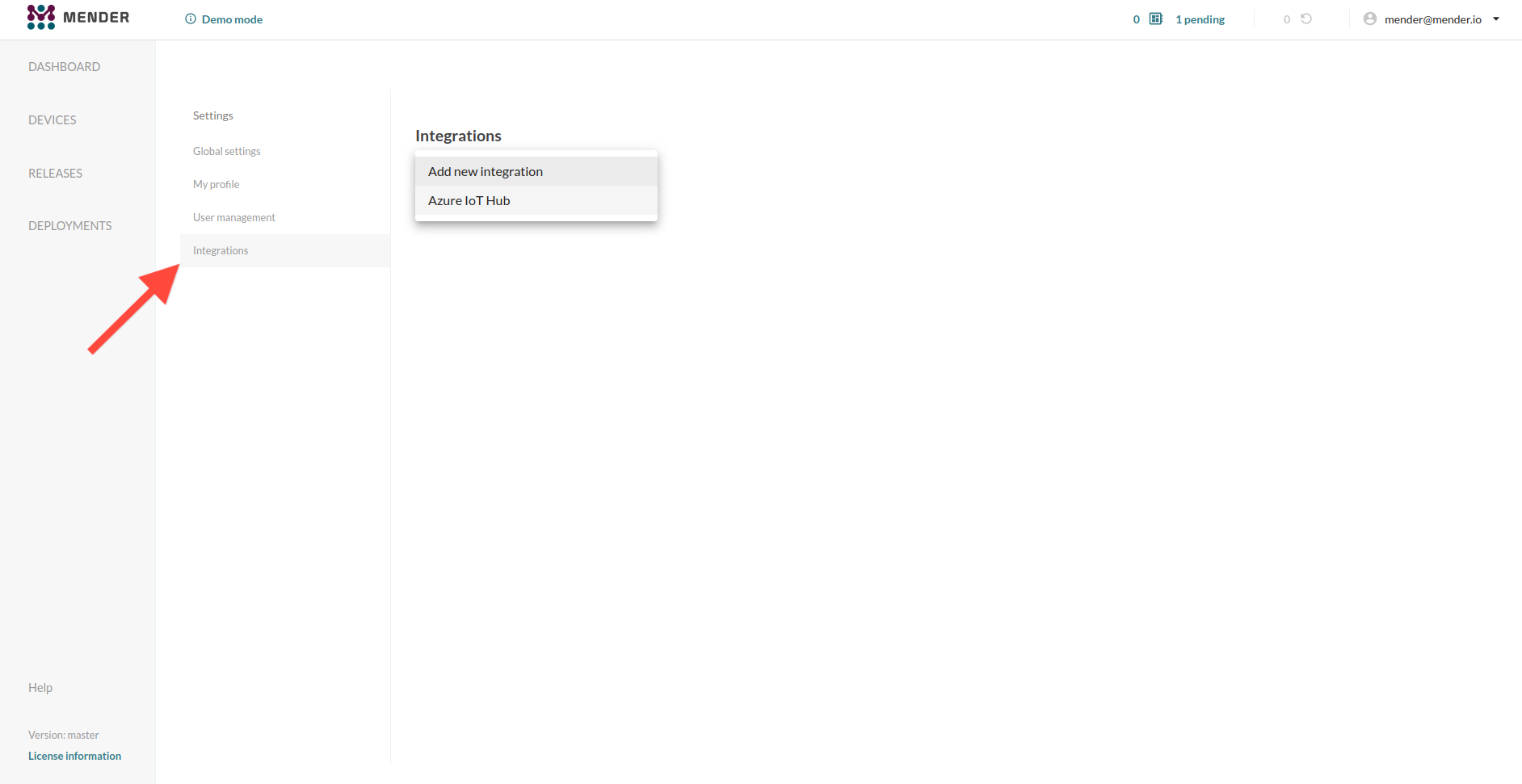

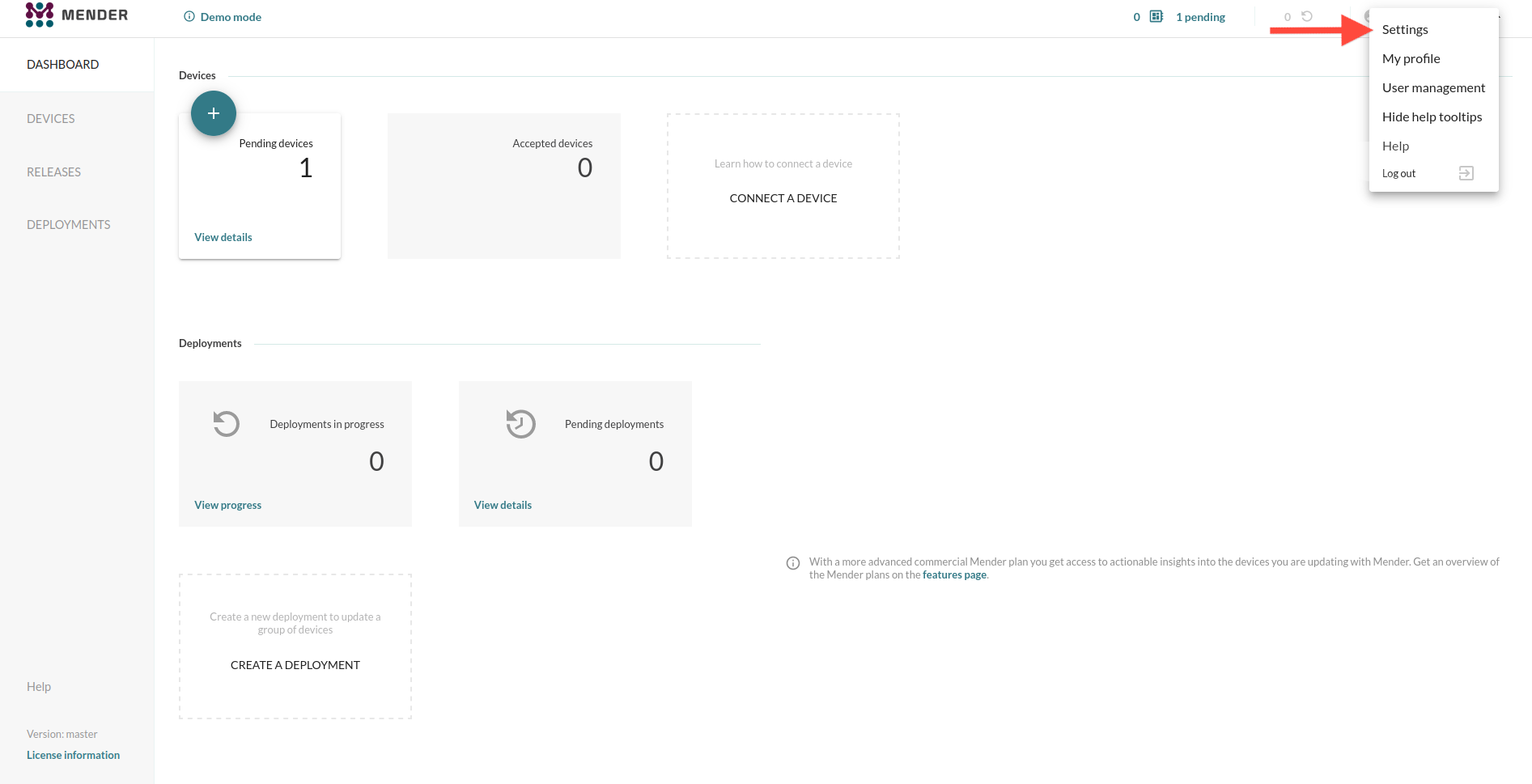

To connect your devices to Azure IoT Hub, you need to enter a connection string. Open the Mender UI and navigate to Settings -> Integrations: integrations integrations

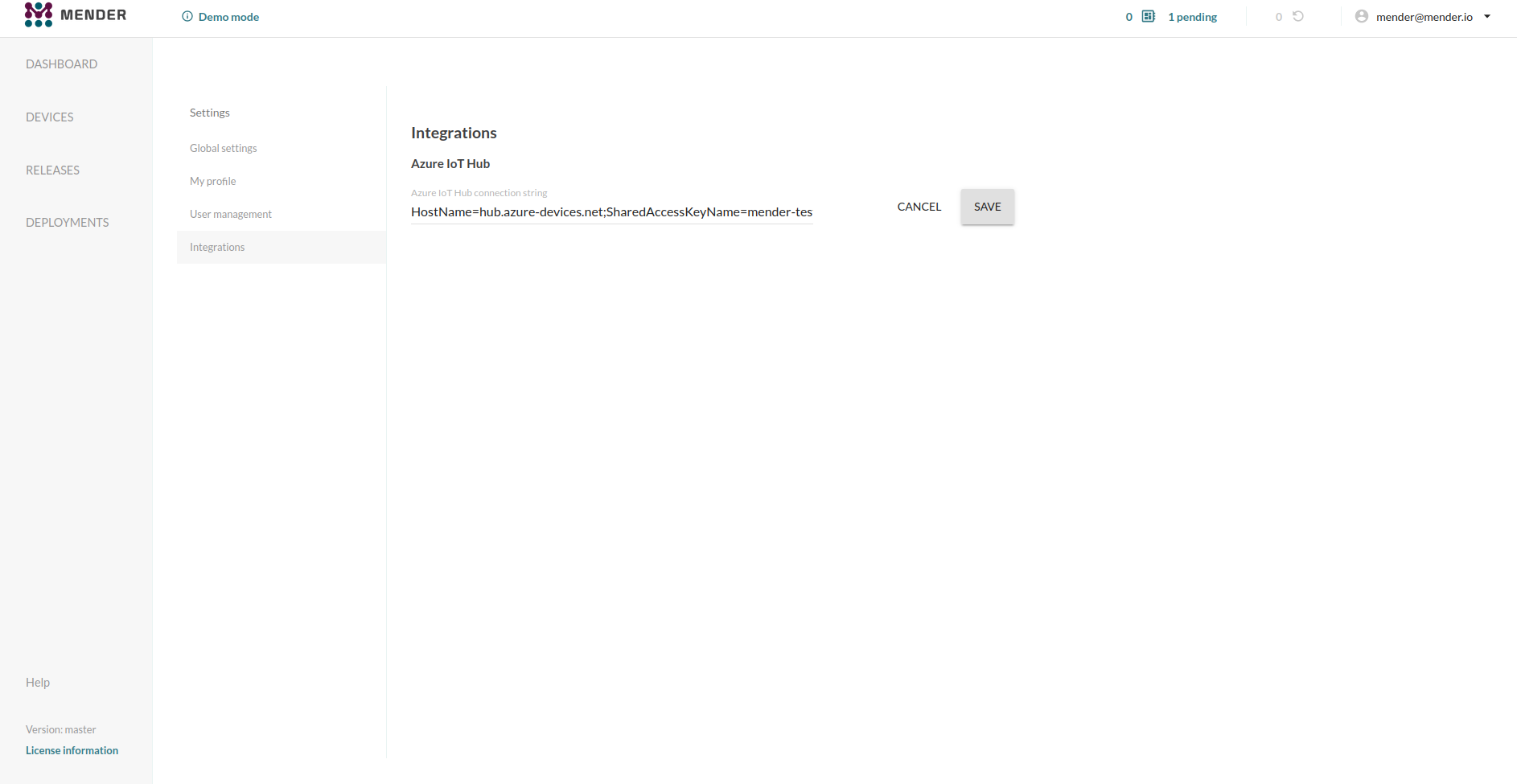

Choose the Azure IoT Hub integration and enter your IoT Hub connection string:

connection string

You can find your connection string under the Shared access policies menu in your IoT Hub after selecting desired access policy:

The iothubowner policy has the required permissions, but you can also use a more limited account if desired. Mender needs the Shared access policy with Registry Read, Registry Write and Service Connect permissions.

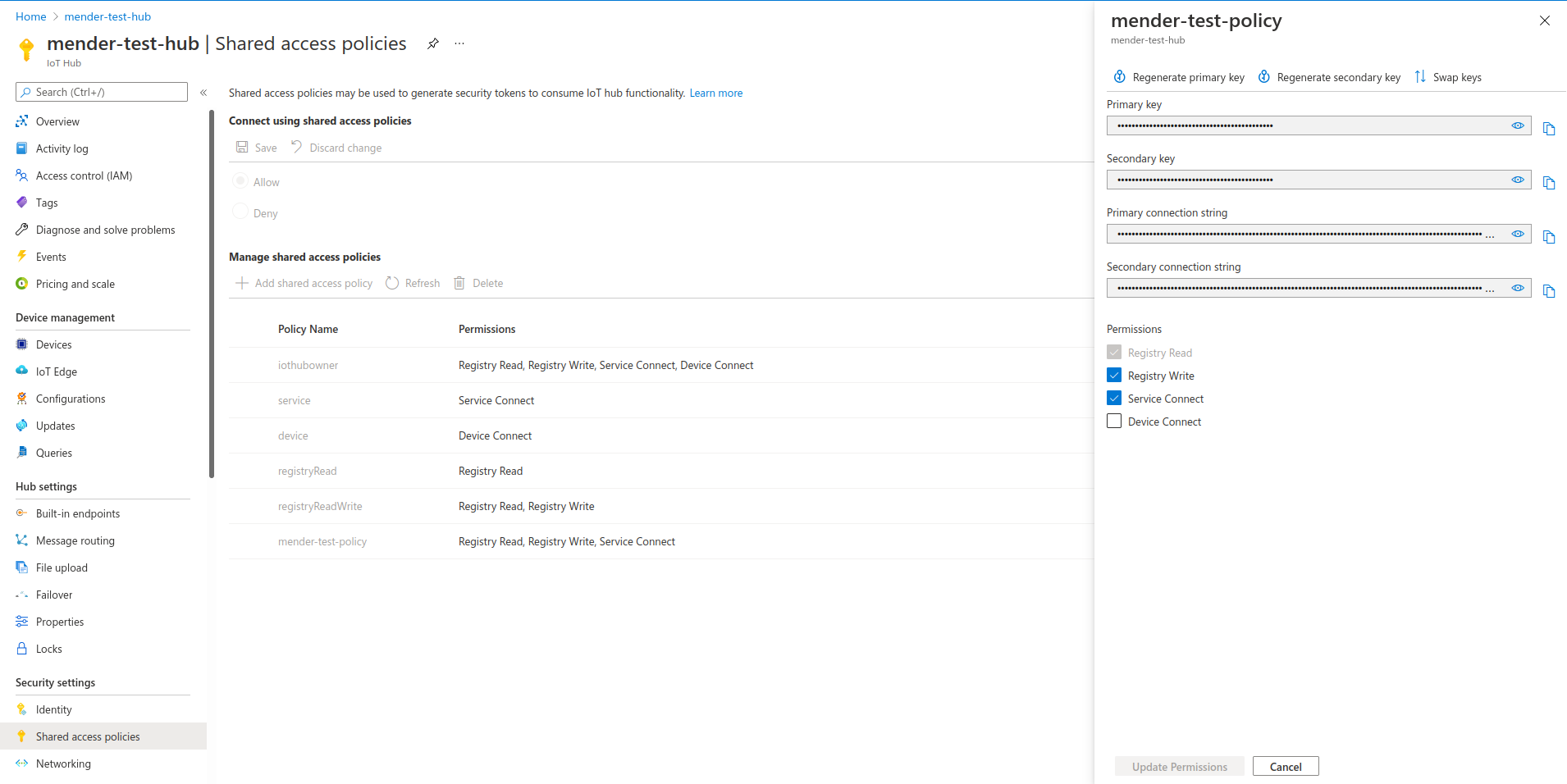

Shared access policies

Connect your devices to Azure IoT Hub automatically using Mender

Go to the Devices tab in Mender and accept a device. After it gets authorized in Mender, it will also show up in your Azure IoT Hub:

Both Mender and Azure IoT Hub use the same Device ID. This makes it easy to cross-reference your devices between Mender and Azure IoT Hub.

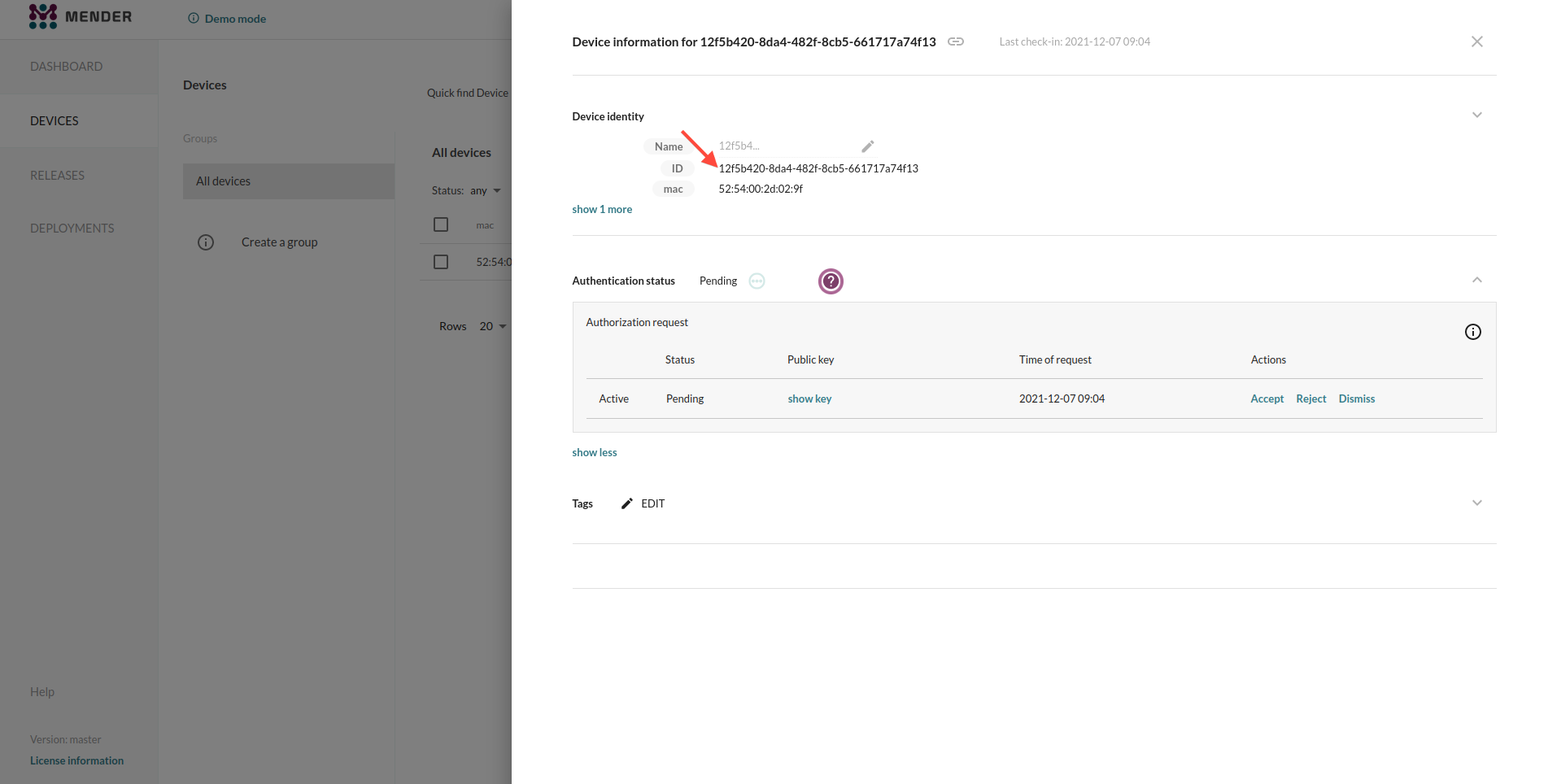

Accept device

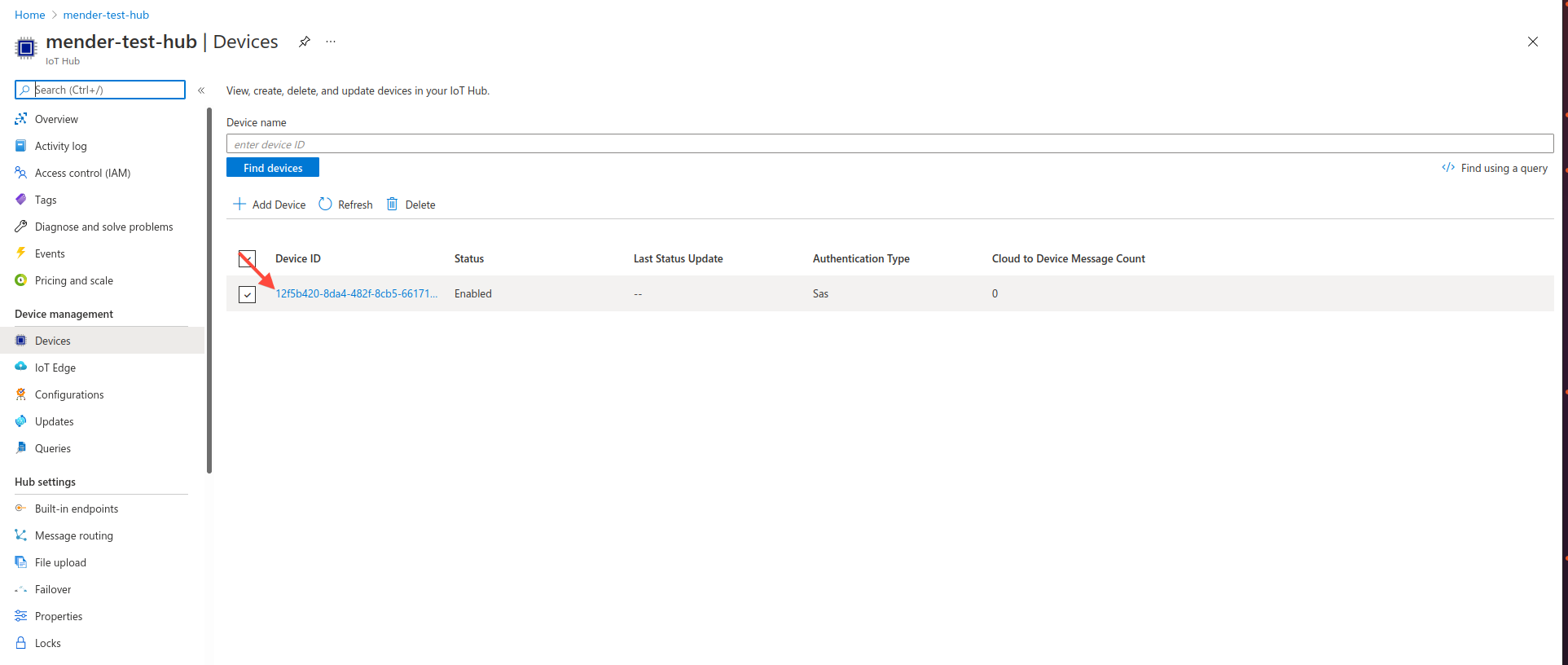

Azure devices

From now on, your device can send data to Azure IoT Hub!

Device lifecycle overview

In sum, the lifecycle of an Azure IoT Hub integrated device is:

  1. At first, the device gets accepted - you can use various flows to achieve this state. See device authentication for more information.
  2. Mender provisions the device in Azure IoT Hub - as a result of this operation, the Mender server retrieves the Azure device connection string.
  3. The Mender Configure add-on sets the device connection string in file (/var/lib/mender-configure/device-config.json) on the device. We recommend to create a Mender configuration script to reconfigure the Azure IoT application and restart it with its new connection string.
  4. From now on, device applications can read the connection string from the file and communicate with Azure IoT Hub.
  5. If the device gets rejected or dismissed in Mender, it is automatically set to Disabled state in Azure IoT Hub.
  6. If the device gets decommissioned, it is automatically Deleted from Azure IoT Hub.

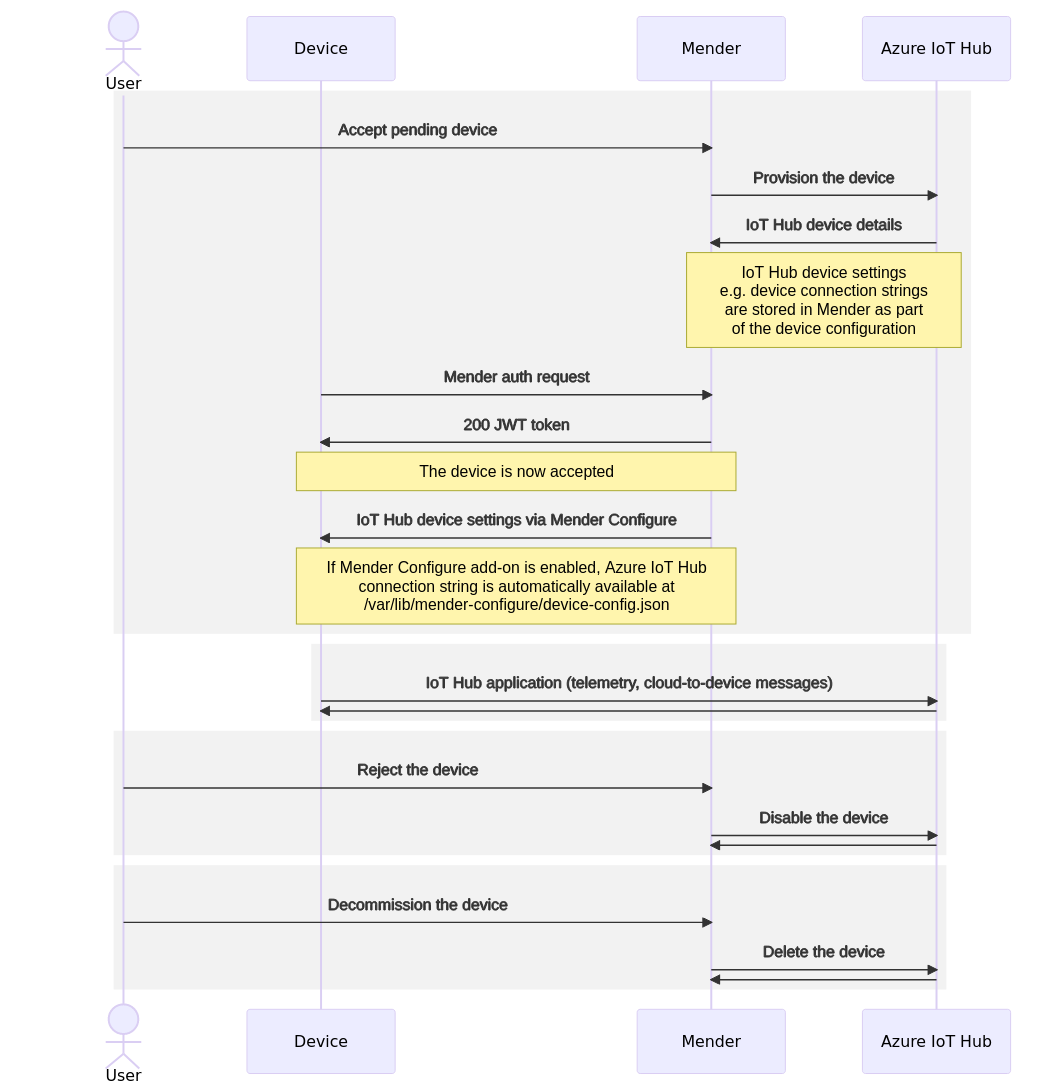

Device lifecycle

Device Twin management

As an additional integration point, the Mender server obtains the Device Twin of the devices from the Azure IoT Hub. This means you can see and manage the Device Twin directly from Mender, together with everything else about the device.

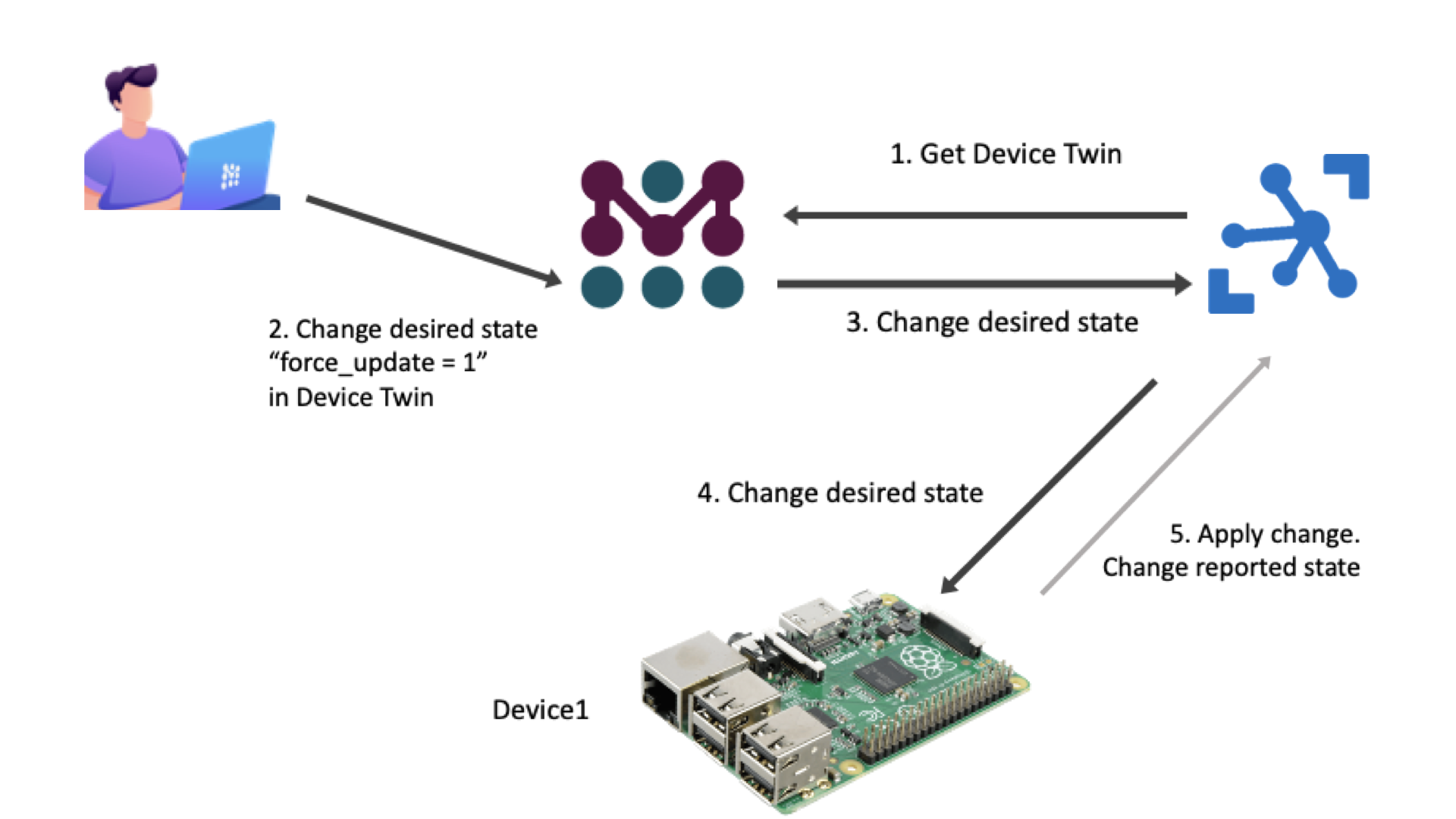

Device Twin flow

The Device Twin is available through the Mender APIs and UI.

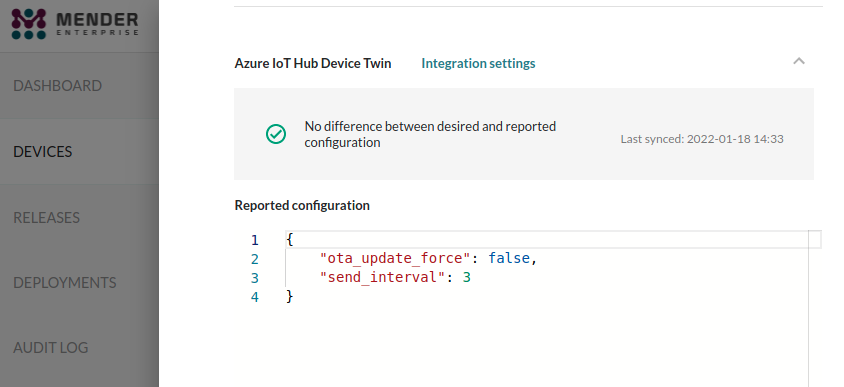

Device Twin edit

Mender strips away the $metadata and $version keys from the Azure Device Twin because they are not indended to be changed by users. Thus these keys are not visible in the Mender UI nor API responses. They still exist in Azure IoT Hub, however.

Role Based Access Control

Role Based Access Control is only available in the Mender Enterprise plan. See the Mender features page for an overview of all Mender plans and features.

Admin permission is required to set up the integraiton, i.e. set the connection string of the Azure IoT Hub in Mender's Settings.

Role Based Access Control is also enforced for the Device Twin:

  • To see the Device Twin you need Read permission to the device
  • To edit the Device Twin you need Admin permission
