Mender Gateway

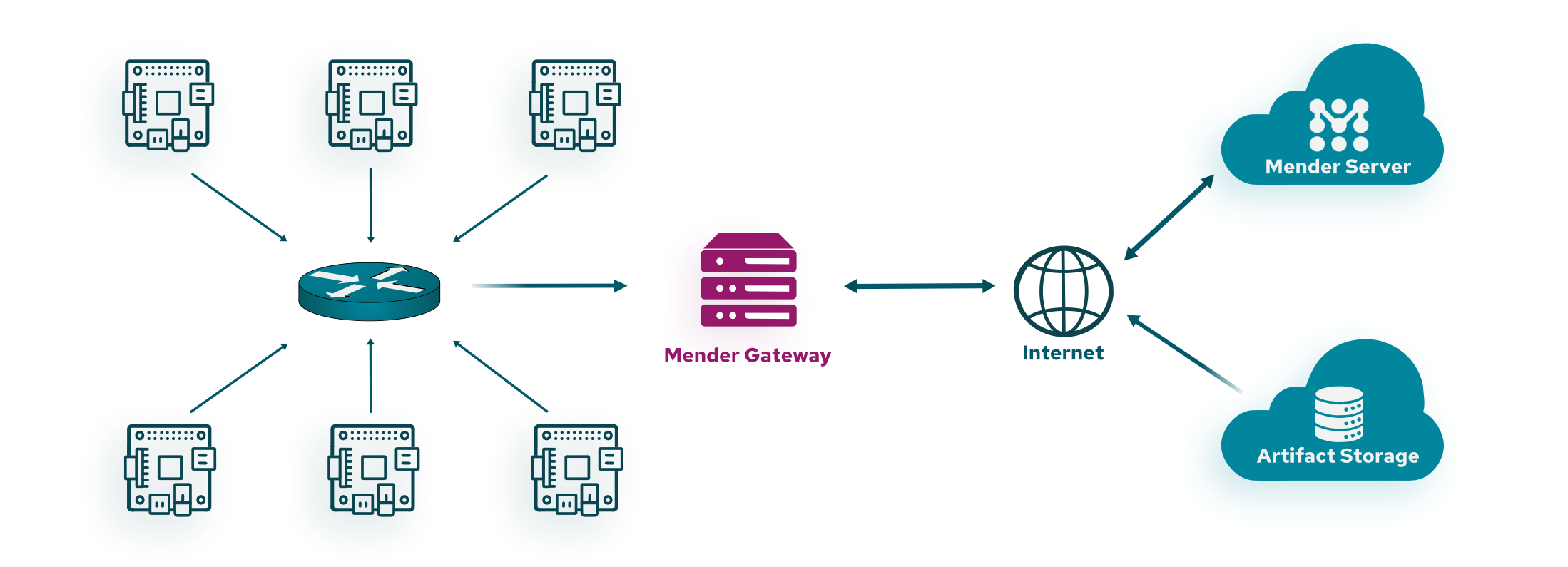

In segregated networks, most devices may operate without direct access to the Internet. In such networks, typically only a gateway has Internet access and offers a limited set of services to devices in the local network. Mender Gateway is such an application service that runs on the gateway and enables managing and deploying OTA updates to devices on the local network. The gateway acts as a proxy with the ability to understand and serve client requests locally.

Mender Gateway operates by proxying requests from a local HTTP(S) server on the local network to the upstream Mender Server. It is capable of proxying Artifacts from an s3-compatible file server to the devices and enabling mutual TLS authentication requests on behalf of devices.

Artifact Proxy and Cache

The Mender Gateway can understand when a device has an available update and serves Artifacts on the server's behalf. Without this feature, the device would try downloading the Artifacts referenced by the download link contained in the deployment instructions directly from the internet. The Mender Gateway will instead replace the download link in the deployment instructions with a local URL served by itself.

It can also cache the Artifacts locally and serve them locally when needed. In this way, when multiple devices request the same Artifact, it will be downloaded only once and then served from the cache for the subsequent download requests saving bandwidth. The Mender Gateway will automatically manage the cache eviction when the Artifacts cache is enabled if there is no more free space on the path specified in the configuration file. Freeing up disk space will remove cached Artifacts that are not being served anymore to clients starting from the oldest one. It is highly recommended to use a dedicated partition or volume to store the Artifacts on the Gateway device to avoid Mender Gateway filling up the root file system or the data partition.

The cache feature can be enabled by setting the configuration option ArtifactsCache to true in the mender-gateway.conf configuration file as shown in this example:

{
    "HTTPS": {
        "Enabled": true,
        "Listen": ":443",
        "ServerCertificate": "/usr/share/doc/mender-gateway/examples/cert/cert.crt",
        "ServerKey": "/usr/share/doc/mender-gateway/examples/cert/private.key"
    },
    "Features": {
        "ArtifactsProxy": {
            "Enabled": true,
            "GatewayURL": "https://gateway.docker.mender.io",
            "DomainWhitelist": ["s3.amazonaws.com"],
            "ArtifactsCache": {
                "Enabled": true,
                "Path": "/var/cache/mender-gateway"
            }
        }
    },
    "UpstreamServer": {
        "URL": "https://hosted.mender.io"
    }
}

Gateway Systems

Devices connected to a Mender Gateway instance form a virtual group. For historical reasons, this virtual group is called a Gateway's Device System.

To facilitate working with devices from such a group, Mender Gateway provides a mechanism to add a special inventory attribute named mender_gateway_system_id to the inventory data reported by all devices connected to it. The value of the attribute can be configured with the SystemID configuration key, as part of the DeviceSystem configuration object.

{
    "HTTPS": {
        "Enabled": true,
        "Listen": ":443",
        "ServerCertificate": "/usr/share/doc/mender-gateway/examples/cert/cert.crt",
        "ServerKey": "/usr/share/doc/mender-gateway/examples/cert/private.key"
    },
    "Features": {
        "ArtifactsProxy": {
            "Enabled": true,
            "GatewayURL": "https://gateway.docker.mender.io",
            "DomainWhitelist": ["s3.amazonaws.com"]
        },
        "DeviceSystem": {
            "Enabled": true,
            "SystemID": "REPLACE_WITH_YOUR_UNIQUE_SYSTEM_ID"
        }
    },
    "UpstreamServer": {
        "URL": "https://hosted.mender.io"
    }
}

The name of the mender_gateway_system_id inventory attribute is pre-defined to ensure consistency and to allow Mender Server recognize the devices belonging into a particular Gateway System. In UI, the Gateway device has a tab called System which lists all devices connected to it and which allows creation of deployments targetting the particular group of devices.

In order to add other common attributes that are not pre-defined, but are still added for all devices connected to a particular Mender Gateway, the DefaultInventory setting can added to the config as shown below:

{
    "Features": {
        "DeviceSystem": {
            "Enabled": true,
            "SystemID": "REPLACE_WITH_YOUR_UNIQUE_SYSTEM_ID",
            "DefaultInventory": [
                {
                    "Name": "region",
                    "Value": "eu"
                },
                {
                    "Name": "customer_name",
                    "Value": "ACME Inc."
                }
            ]
        }
    }
}

Mutual TLS Authentication

The Mender Gateway is capable of automatic provisioning of devices using mTLS authentication. Any device with a valid certificate signed by the Certificate Authority (CA) configured on the gateway, is automatically accepted by the Mender Server. See the mTLS user guide for a reference mutual TLS setup in a testing environment.
