AWS IoT Core integration

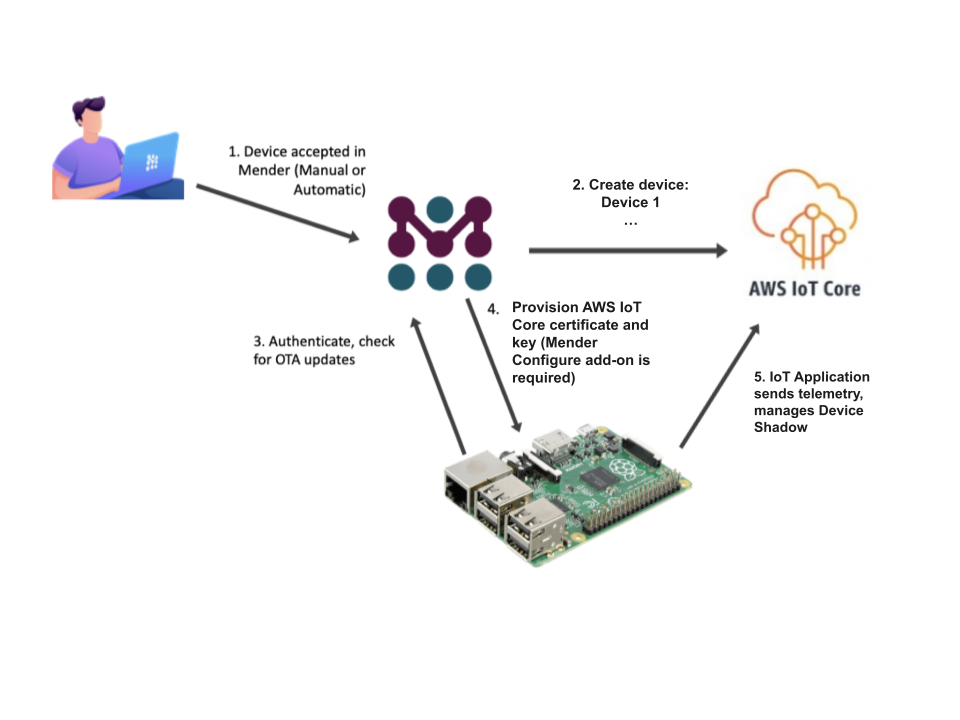

Mender supports preparing devices to use AWS IoT Core. After installing Mender on the device it is automatically created in AWS IoT Core and applications running on the device get access to it. With Mender, you can start writing your AWS IoT application by letting Mender manage the provisioning of the device certificate keys for IoT Core. Moreover, the Device Shadow is integrated into the Mender ecosystem letting you control the desired state and read the one reported by your devices in AWS.

This integration is available in all Mender plans, as well as Mender Open Source.

Prerequisites

A Mender Server and device

You need a device integrated with Mender, see the Get started guide.

AWS IoT Core

You need to set up an AWS account with AWS IoT Core - see AWS IoT Core documentation for more information. To integrate Mender with AWS IoT Core you need to provide an AWS IAM access key for a user with enough privileges to manage AWS IoT Core - see AWS Access management documentation for more information.

An IAM example policy with the minimal required permissions set follows:

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Action": [
                "iot:AttachPolicy",
                "iot:AttachThingPrincipal",
                "iot:CreateCertificateFromCsr",
                "iot:CreatePolicy",
                "iot:CreateThing",
                "iot:DeleteCertificate",
                "iot:DeletePolicy",
                "iot:DeleteThing",
                "iot:DescribeAccountAuditConfiguration",
                "iot:DescribeCertificate",
                "iot:DescribeEndpoint",
                "iot:DescribeThing",
                "iot:DetachThingPrincipal",
                "iot:GetIndexingConfiguration",
                "iot:ListBillingGroups",
                "iot:ListScheduledAudits",
                "iot:ListThingGroups",
                "iot:ListThingGroupsForThing",
                "iot:ListThingPrincipals",
                "iot:ListThingTypes",
                "iot:ListThings",
                "iot:UpdateCertificate"
            ],
            "Resource": "*"
        }
    ]
}

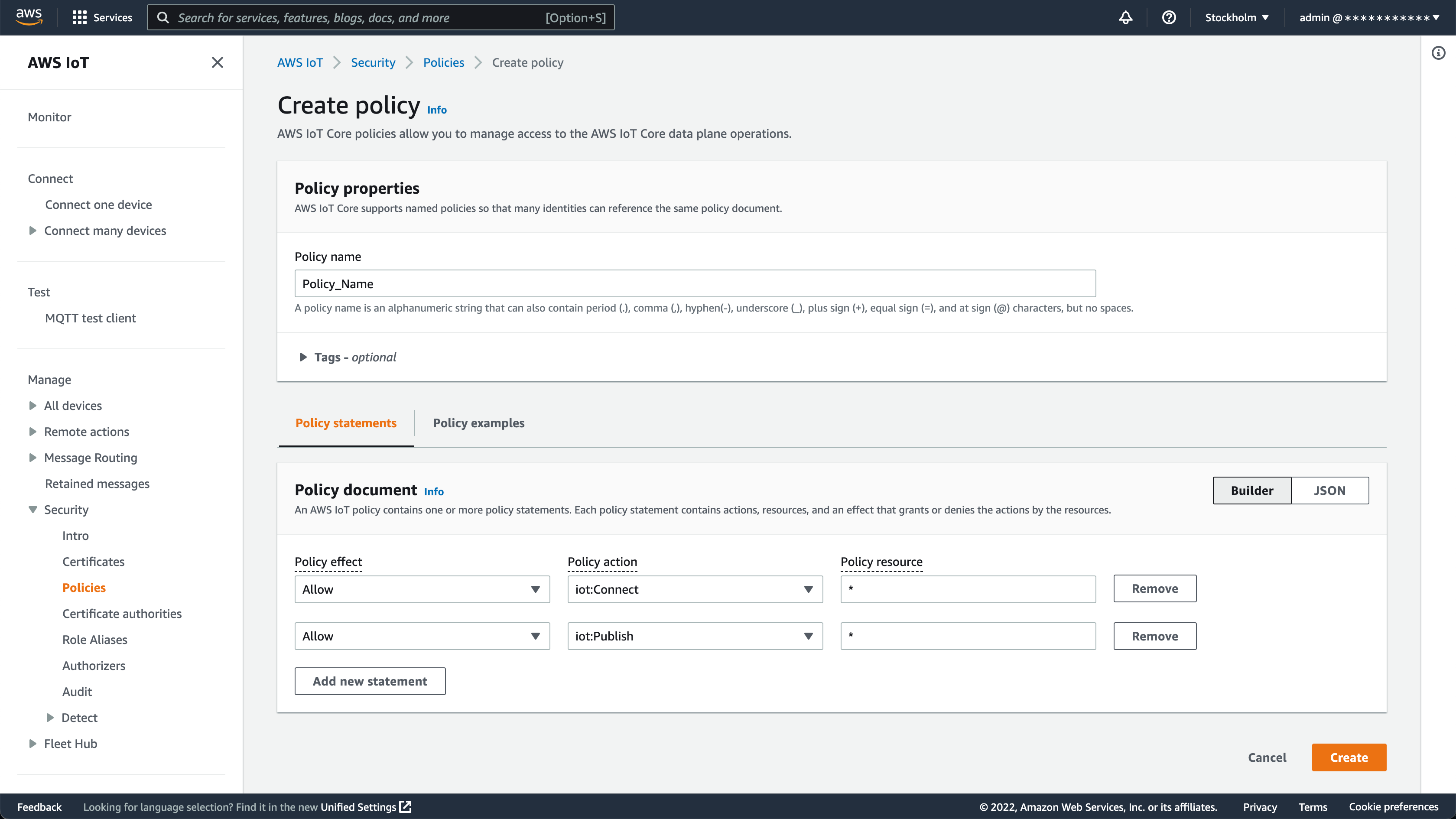

You also have to create an AWS IoT Core Device Policy. The policy will be attached to all accepted devices in the Mender UI.

An AWS IoT Policy example with extended permissions set for getting started and demo purposes follows:

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Action": "iot:Connect",
      "Resource": "*"
    },
    {
      "Effect": "Allow",
      "Action": "iot:Publish",
      "Resource": "*"
    },
    {
      "Effect": "Allow",
      "Action": "iot:Receive",
      "Resource": "*"
    },
    {
      "Effect": "Allow",
      "Action": "iot:Subscribe",
      "Resource": "*"
    }
  ]
}

Configuring Mender to integrate with AWS IoT Core

To connect your devices to AWS IoT Core, you need to set up the integration by providing an AWS IAM access key pair and specifying the AWS IoT Core Device Policy name.

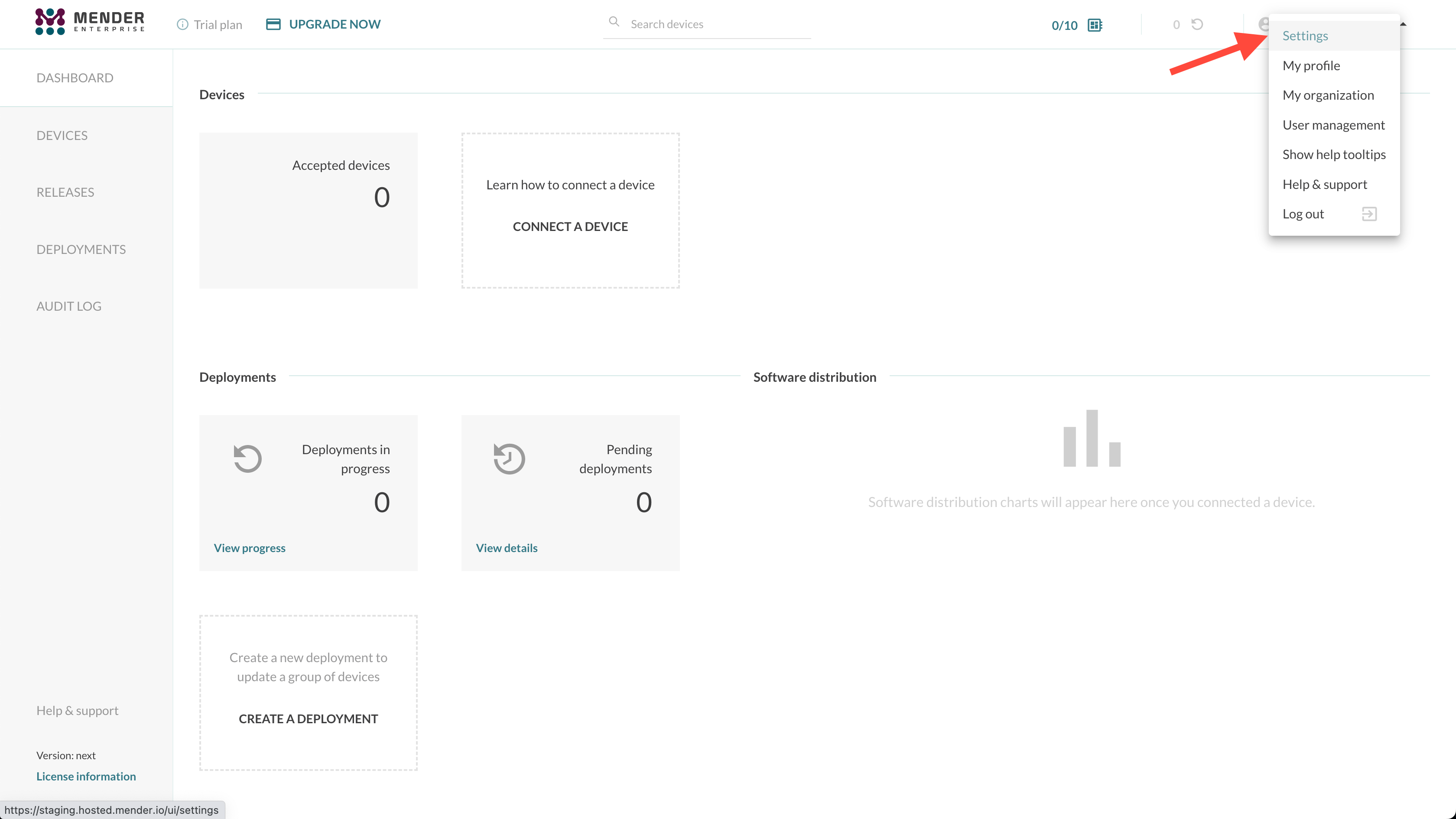

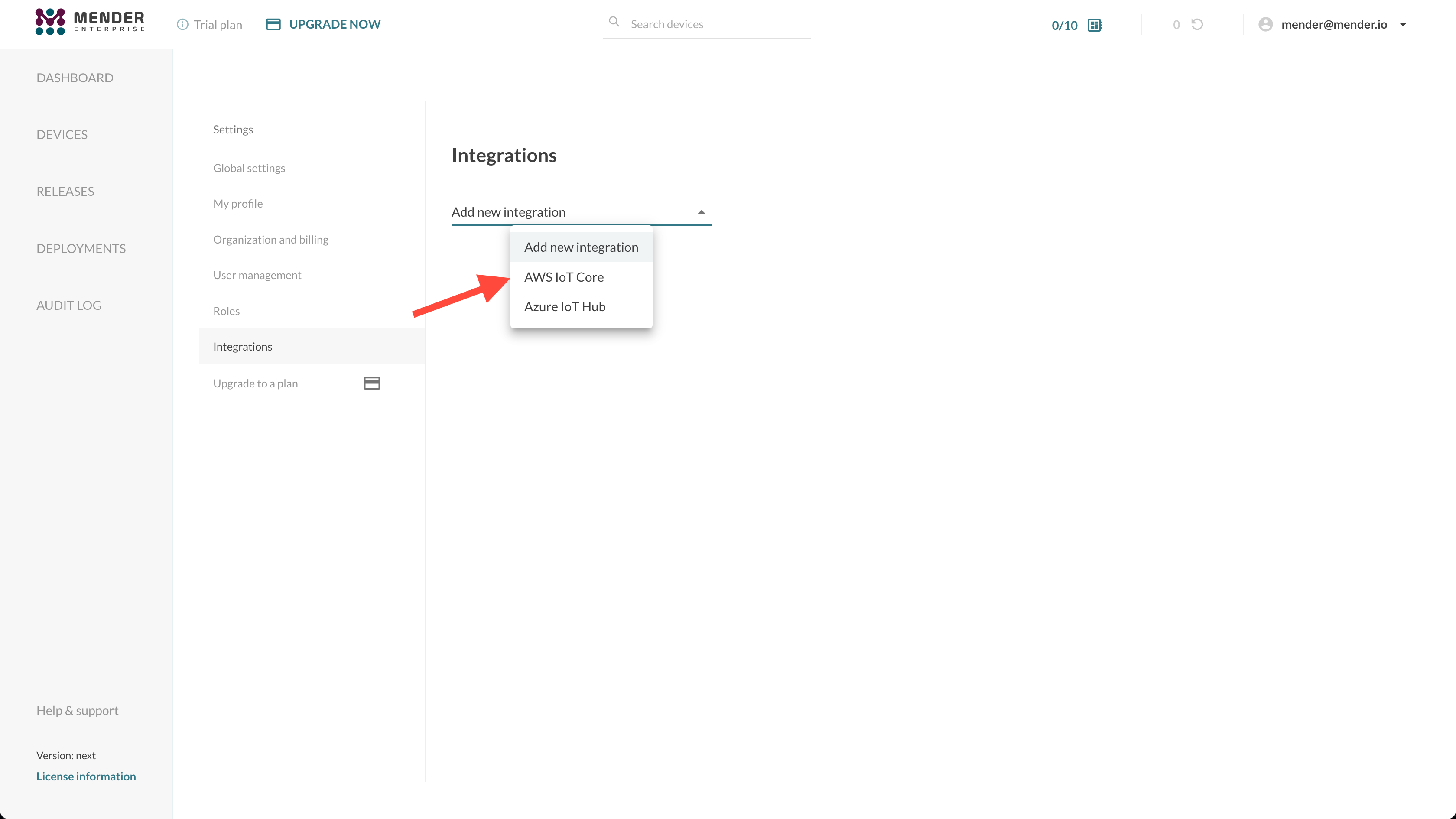

Open the Mender UI and navigate to Settings -> Integrations:

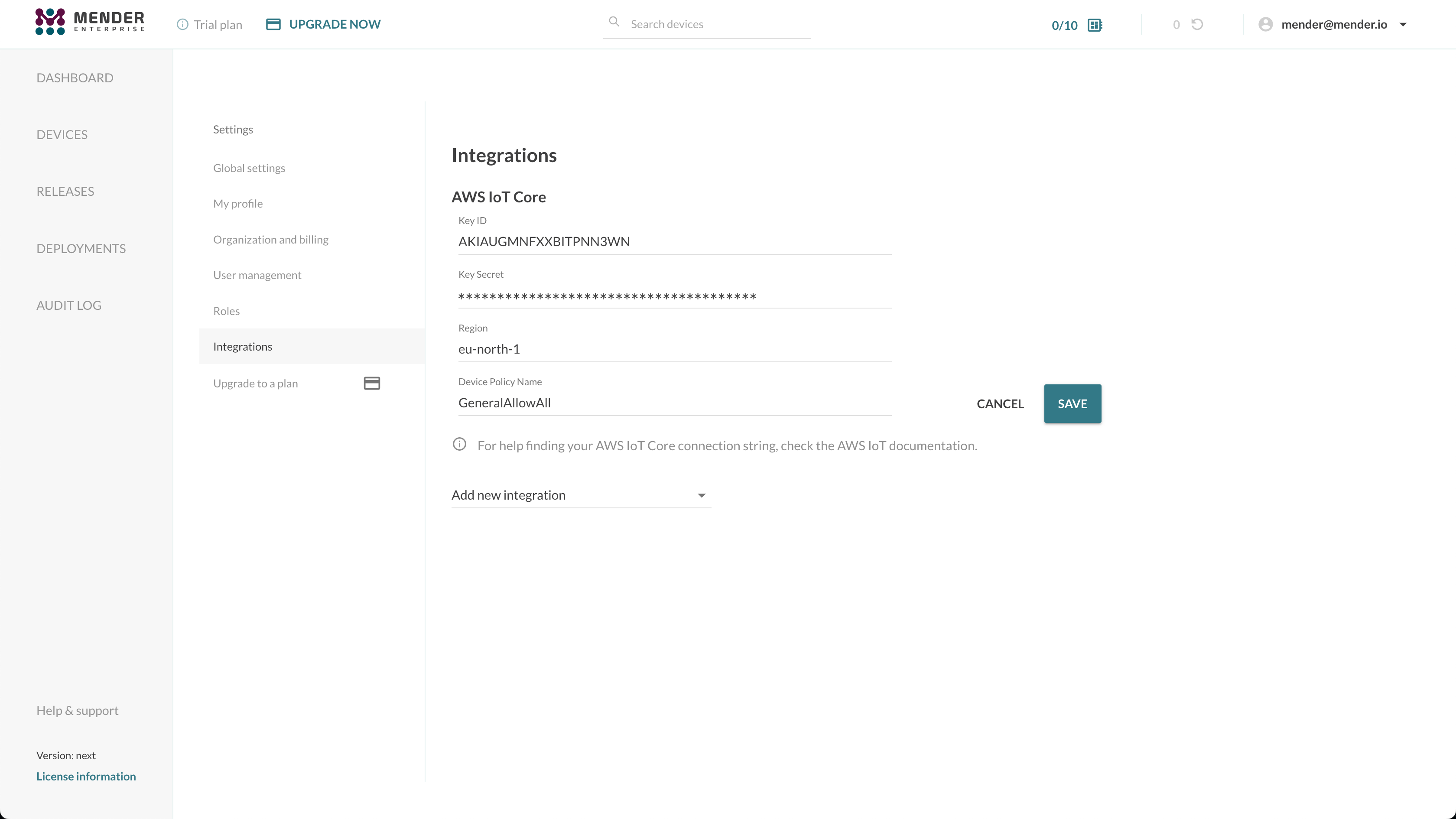

Choose the AWS IoT Core integration and enter your IAM Key ID, Key Secret, Region and Device Policy Name:

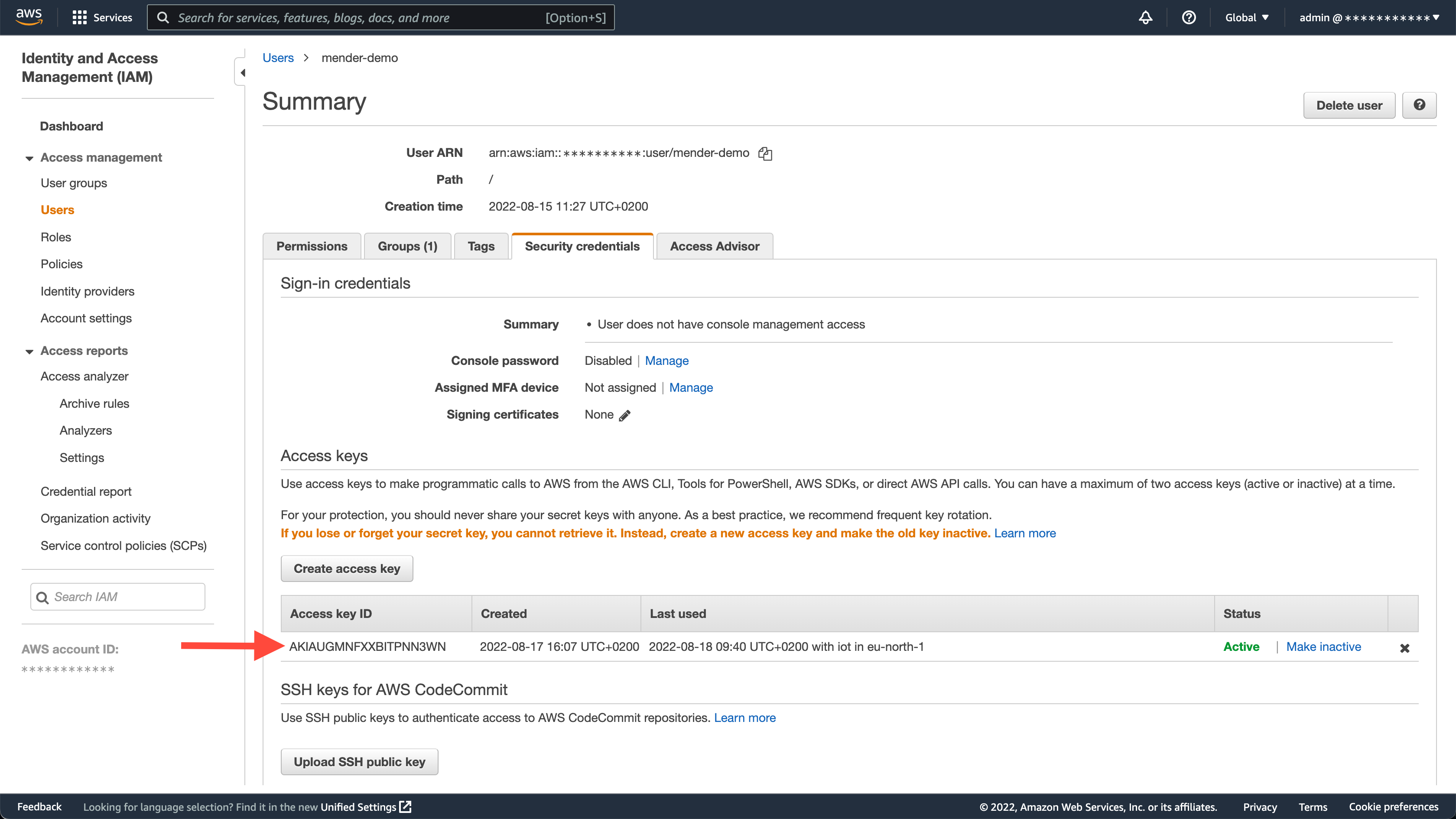

You can create the AWS access keys from the Security credentials tab in the AWS IAM Users menu:

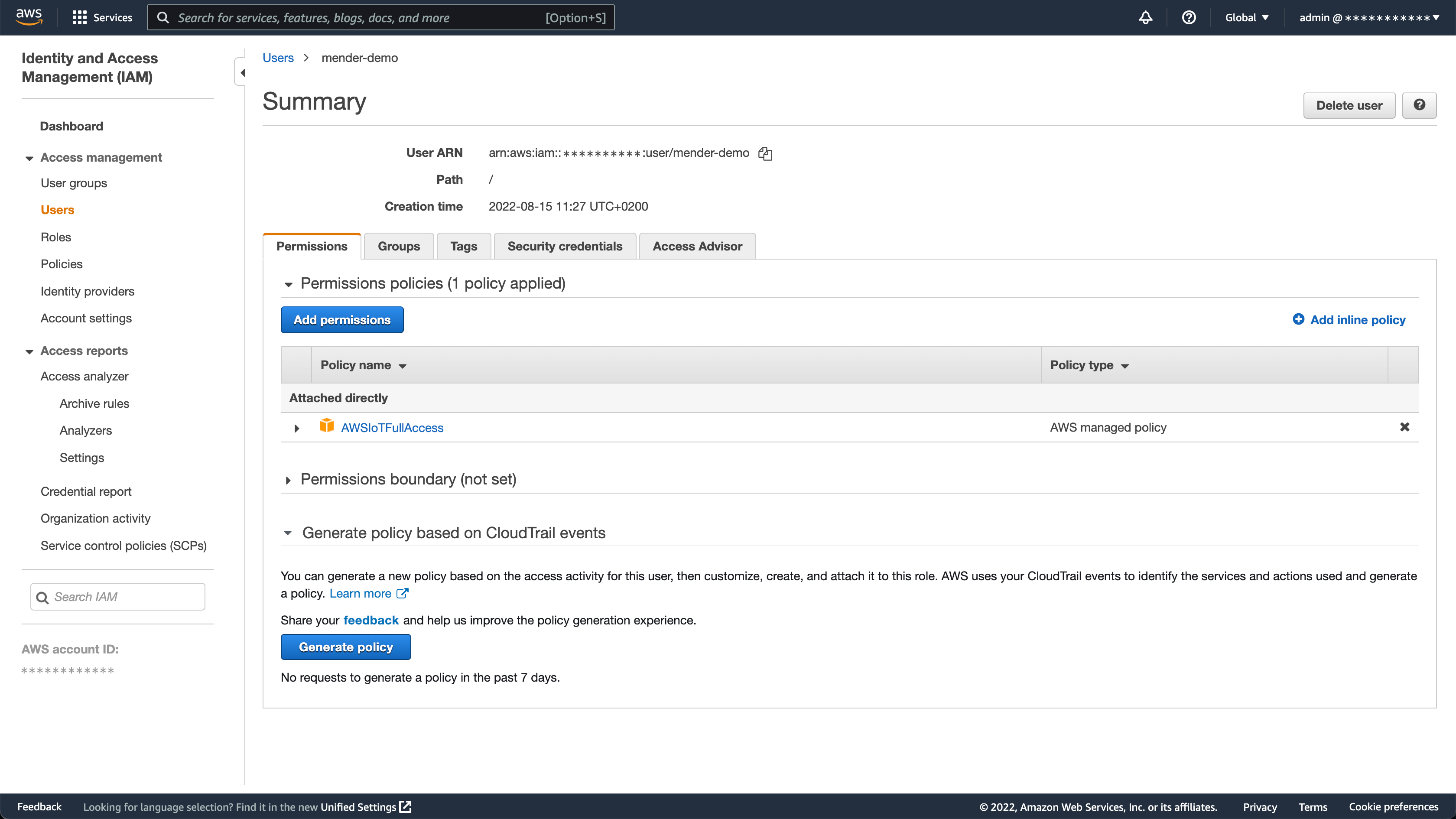

To attach IAM Policy to the AWS user in AWS Management Console go to IAM -> Users -> <username>, press Add permissions in Permissions tab and attach AWSIoTFullAccess existing policy directly.

Connect your devices to AWS IoT Core automatically using Mender

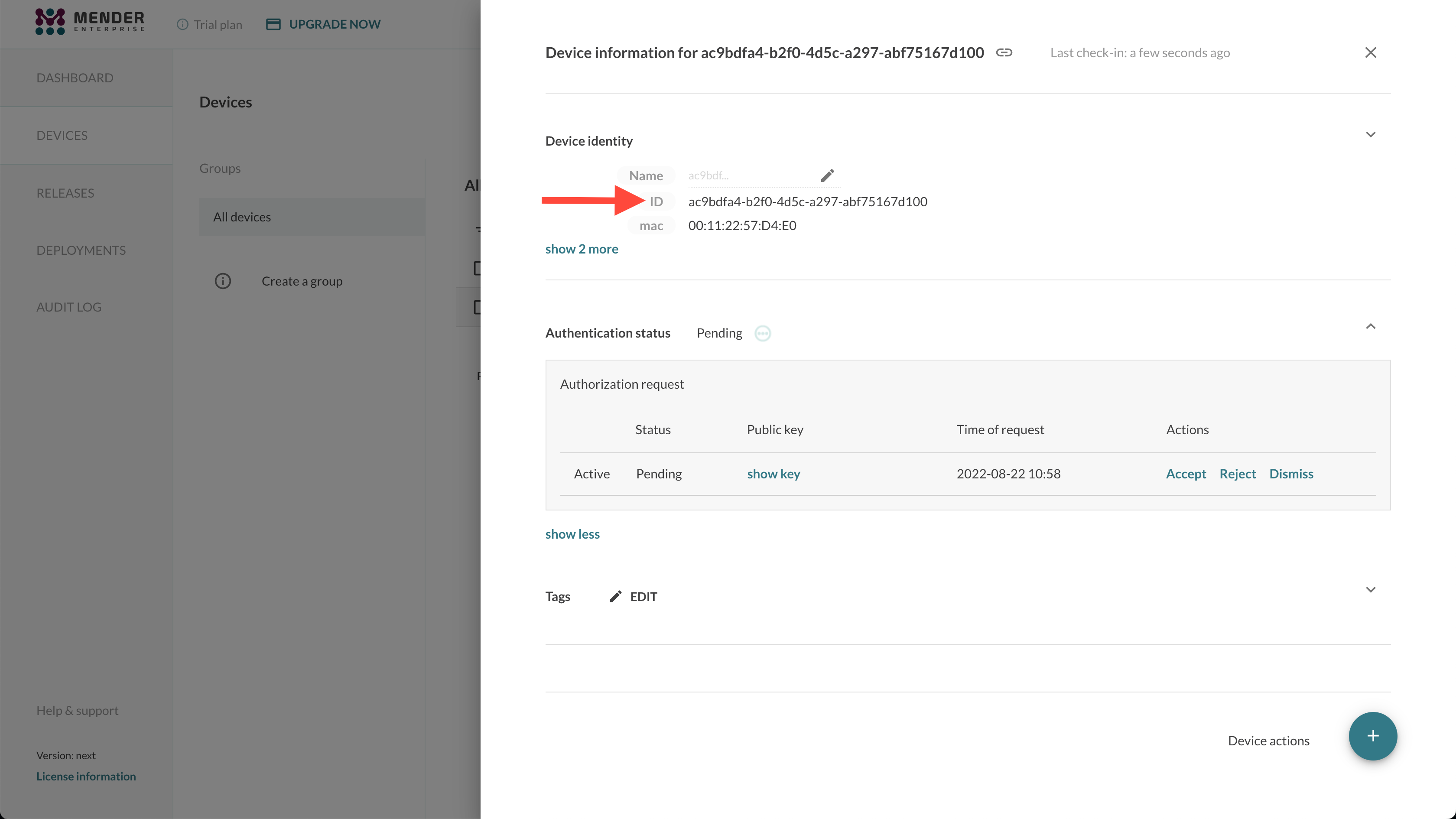

Go to the Devices tab in Mender and accept a device. After it gets authorized in Mender, it will also show up in your AWS IoT Core:

From now on, your device can send data to AWS IoT Core!

Device lifecycle overview

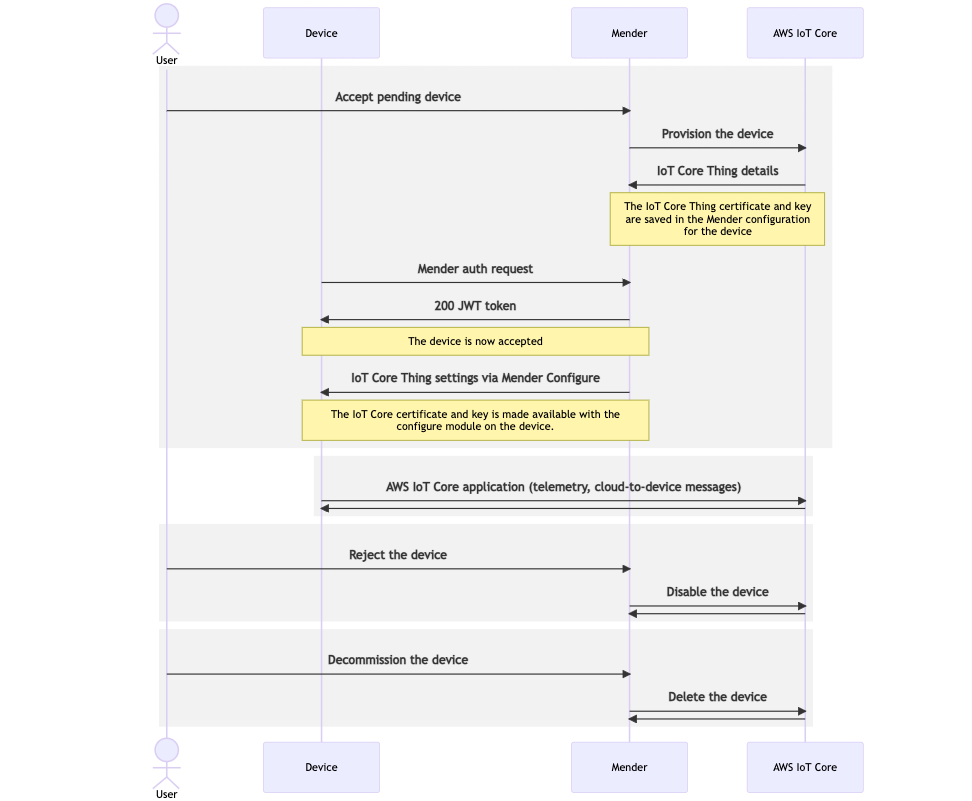

The lifecycle of an AWS IoT Core integrated device is:

1. At first, the device gets accepted - you can use various flows to achieve this state. See device authentication for more information.
2. Mender provisions the device in AWS IoT Core - as a result of this operation, the Mender Server generates an AWS IoT Core X.509 client certificate and registers it in AWS IoT Core.
3. The Mender Configure add-on sets the Thing's private key and certificate in the file (/var/lib/mender-configure/device-config.json) on the device. We recommend creating a Mender configuration script to reconfigure the AWS IoT application and restart it with these credentials.
4. From now on, device applications can read the private key and certificate from the file and communicate with AWS IoT Core.
5. If the device gets rejected or dismissed, Mender will automatically inactivate the certificate associated with the Thing in AWS IoT Core.
6. If the device gets decommissioned, the Thing and the related resources, including the certificate, are automatically Deleted from AWS IoT Core.

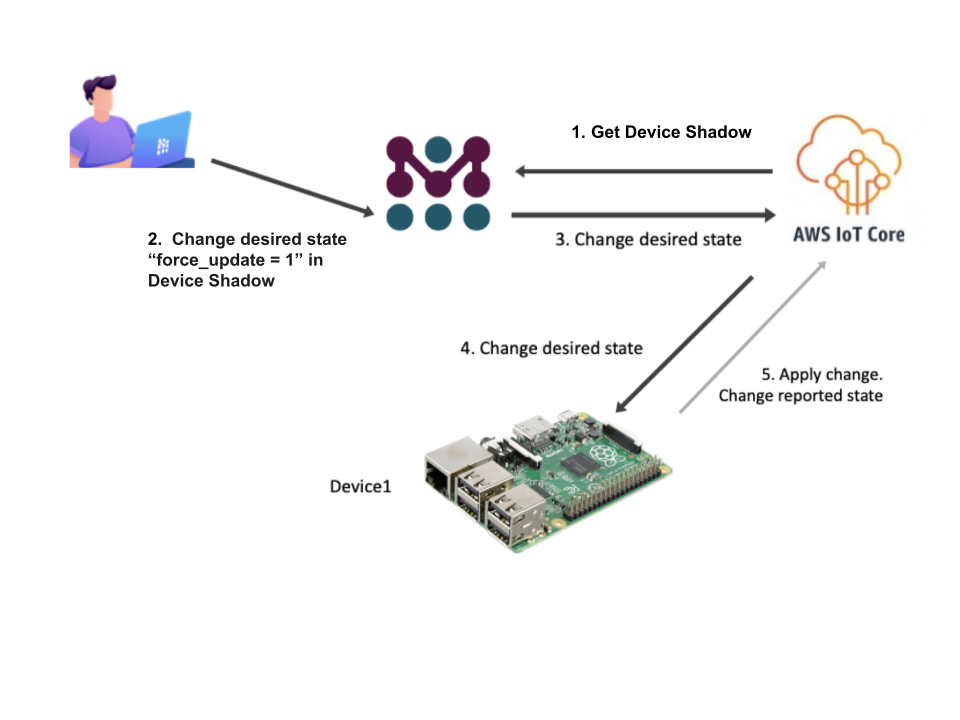

Device Shadow management

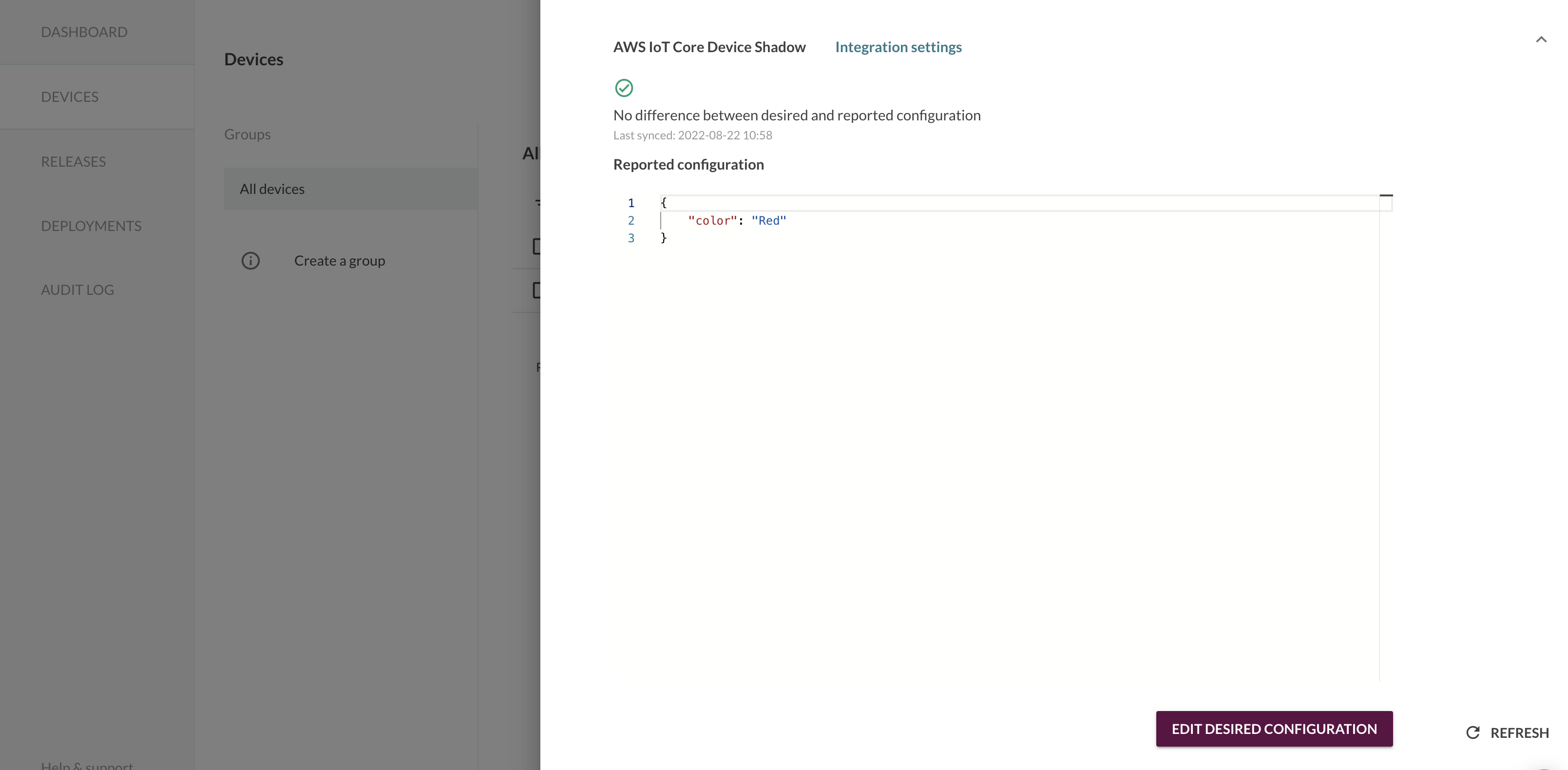

The Mender Server integrates with IoT Core Device Shadow service. This means you can see and manage the Device Shadow directly from Mender, together with everything else about the device.

The Device Shadow is available through the Mender APIs and UI.

Role Based Access Control

Admin permission is required to set up the integration, i.e. set the AWS access keys, region and device policy name for AWS IoT Core in the Mender's Settings.

Role Based Access Control is also enforced for the Device Shadow:

• To see the Device Shadow you need Read permission to the device
• To edit the Device Shadow desired state, you need Admin permission
